| JY105JYJ125JYJ155 |

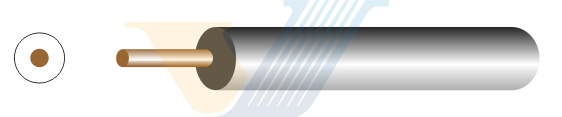

XLPE Insulated Wire. |
| 105℃,125℃,155℃ 辐照交联阻燃聚烯烃绝缘电机引接线（环保） |
|
| ■产品说明： |
■ PRODUCT DESCRIPTION |
| ●额定温度：105℃,125℃,155℃ |
●Rated temperature：105℃,125℃,155℃ |
| ●额定电压：600V/750V |
●Rated voltage：600V/750V |
| ●参考标准：JB 6213 |
●Referencestandard：JB 6213 |
| ●导体使用单支或绞合0.5-120mm2镀锡或裸铜 |
●Solid or stranded ,tinned or bare copper conductor0.5-120mm2 |
| ●XLPE绝缘，符合ROHS环保标准 |
●XLPE insulation ,comply with ROHSenvironmental standard |
| ●绝缘厚度均匀、易裁线、易剥皮 |
●Uniform insulation thickness to ensure easy stripping and cutting |
| ●用于B级,F级电机引接线. |
●For used leads wiring of B,F insulation class motor |
■印字 MARKING
JY105□mm2105℃600V---B--VIGOROUS
JYJ125□mm2125℃600V---F--VIGOROUS
JYJ155□mm2155℃750V---F--VIGOROUS
■产品结构CABLE CONSTRUCTION
导体
Conductor
|
绝缘
Insulation
|
******导体电阻
Max.Cond.
Resistance
(Ω/Km,20℃) |
25℃时空气敷
设载流量25℃
Cairlaying
Carrying
Current(A) |
标准长度
Standard
Put-up
(M/Coil) |
规格
AWG
|
根数/线径
(No/mm) |
外径
Dia.
(mm) |
厚度
Thickness
(mm) |
标称外径
O.D.
(mm) |
0.5 |
16/0.2 |
0.95 |
0.6 |
2.25±0.1 |
40.1 |
15 |
200 |
0.75 |
24/0.2 |
1.25 |
2.50±0.1 |
26.7 |
17 |
1.0 |
32/0.2 |
1.35 |
2.60±0.1 |
20.0 |
19 |
1.5 |
30/0.25 |
1.65 |
0.7 |
3.15±0.1 |
13.7 |
24 |
100 |
2.5 |
49/0.25 |
2.1 |
3.65±0.1 |
8.21 |
33 |
4.0 |
56/0.3 |
2.7 |
4.3±0.1 |
5.09 |
45 |
6.0 |
84/0.3 |
3.3 |
0.8 |
5.6±0.1 |
3.39 |
58 |
10 |
84/0.4 |
4.7 |
6.8±0.2 |
1.95 |
80 |
16 |
126/0.4 |
5.8 |
1.0 |
8.5±0.2 |
1.24 |
107 |
25 |
196/0.4 |
7.4 |
9.5±0.2 |
0.795 |
138 |
35 |
276/0.4 |
8.6 |
11.1±0.2 |
0.565 |
171 |
50 |
396/0.4 |
10.4 |
1.2 |
13.2±0.3 |
0.393 |
210 |
70 |
360/0.5 |
12.5 |
15.0±0.5 |
0.277 |
269 |
50 |
95 |
475/0.5 |
15.3 |
1.4 |
18.50±0.5 |
0.21 |
328 |
100 |
509/0.5 |
16.5 |
19.50±0.5 |
0.196 |
358 |
120 |
608/0.5 |
17.0 |
20.50±0.5 |
0.164 |
420 |
|
JYJ-750
